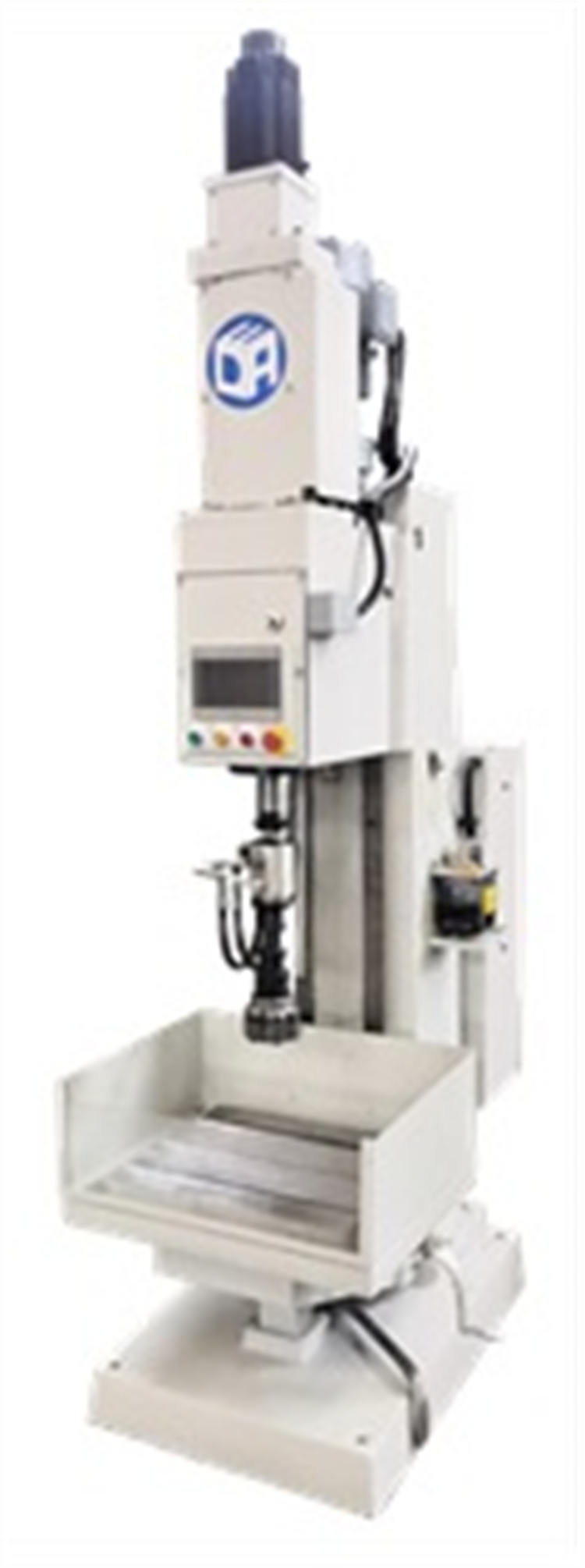

ZHJK514系列經濟型伺服珩磨機

產品介紹：

■機床整體架構采用單立柱結構，結構緊湊。

■采用分離式水箱設計，可配備過濾器，方便用戶清理冷卻液沉淀物質。

■主軸往復采用伺服電機控制，旋轉運動采用速度控制，響應速度快。

■珩磨砂條漲縮裝置為液壓單進 給結構，手動調壓閥設定實現壓力控制。

■機床工作臺采用固定式可升降工作臺，滿足不同高度工件加工。

■采用PLC控制器，運行穩定可靠。

■集成操作平臺，配置TFT彩色液晶觸控面板。專為珩磨加工定制的人機界面更具人性化。

■集中潤滑系統間歇供油，延長滑動部件使用壽命。

■The overall structure of the machine tool adopts a single-column structure, which is compact.

■It adopts a separate water tank design and can equip with filter, which is convenient for users to clean the coolant sediment .

■The reciprocating motion of the spindle is controlled by servo motor, the rotating motion is speed control, and the response speed is fast.

■The expansion and contraction device of the honing sand bar is a hydraulic single-feed structure, and the manual pressure regulating valve is set to realize the pressure control.

■The machine tool worktable adopts a fixed worktable. The worktable can be up or down to meet the processing of workpiece of different heights. ■Adopt subtle integrated PLC controller, stable and reliable operation.

■Integrated operation platform, equipped with TFT color LCD touch panel. The man-machine interface customized for honing is more user-friendly. ■The centralized lubrication system supplies oil intermittently to prolong the service life of sliding parts.

■控制系統采用微秒集成式PLC控制器進行自動化的高性能控制，控制器集成運動控制、邏輯編程功能，配置7“彩色TFT人機界面，操作簡單方便。

■The control system adopts integrated PLC controller for automatic high-performance control. The controller integrates motion control and logic programming functions, and is equipped with a 7" color TFT human-machine interface, which is simple and convenient to operate.

■（選擇配置)機床過濾系統采用紙帶過濾罐進行過濾, 有溫度要求的可增加水冷機強制冷卻。

■ (Option)The filtration system of the machine tool adopts a paper belt filter tank for filtration, and a water cooler is added for forced cooling when there is a temperature requirement.

■機床夾具采用專用夾具并以T型槽方式鏈接，也可訂制自動式浮動夾具結構。

■The machine tool fixture adopts a special fixture and is linked by a T-slot, and an automatic floating fixture structure can also be customized.

■機床配置手動可調式微調連桿機構，以保證珩磨工件尺寸一致性。

■ The machine tool is equipped with a manually adjustable fine-tuning linkage mechanism to ensure the dimensional consistency of the honed workpiece.

■主軸旋轉采用高性能減速電機驅動，實現無級變速控制。

■ The spindle rotation is driven by high-performance reduction motor to realize stepless speed change control.

ZHJK514系列經濟型伺服珩磨機 規格參數
